Street Lighting Pole















 General Information:

Highlight introduced the most advanced and automated production equipment for the manufacture of street and area lighting standard poles. With this unique equipment, we produce a tapered steel tube every 3 minutes averagely, using Automatically Sub-merged Arc Welding. Meanwhile, we achieve economies of speed while improving quality at the same time. All the small parts that go with the pole right along are shipped in their own separate bags for convenience. We can design and fabricate both conical round and polygonal lighting poles as per the required specification.

 General Specification:

Pole Shaft Dimension: Minimum top diameter 60 mm

                    Maximum bottom diameter: 320 mm

                    Maximum Length: 14 m

                    Thickness: 2.5 C 6 mm

                    Shape: Conical round and polygonal

Brackets: Singe, Double, Triple or multi-brackets.

Planting Type: Flange or Direct-bury

Anti-corrosion: 1) Prime Paint

             2) Enamel paint

             3) Powder Coating

             4) Hot-dip Galvanization

Design Standard: EN 40/ BS 5649

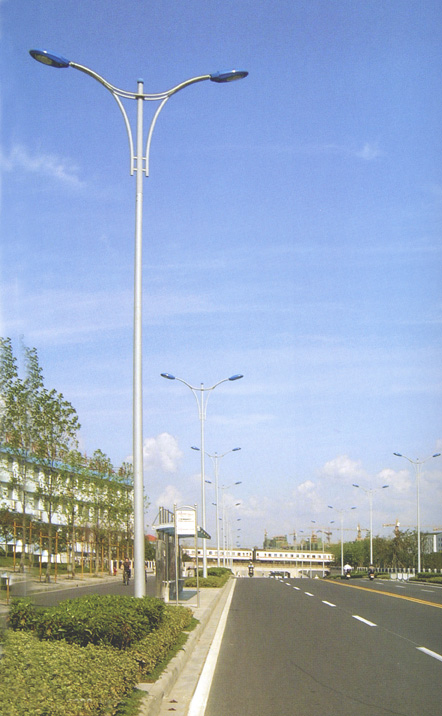

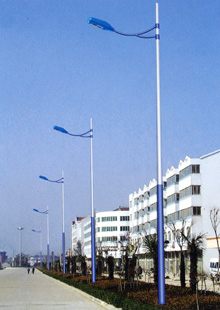

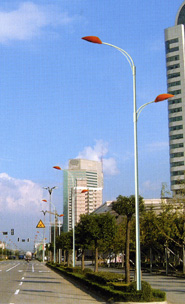

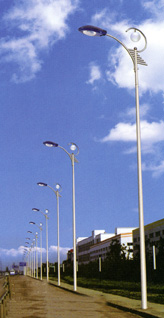

001 002 003 004

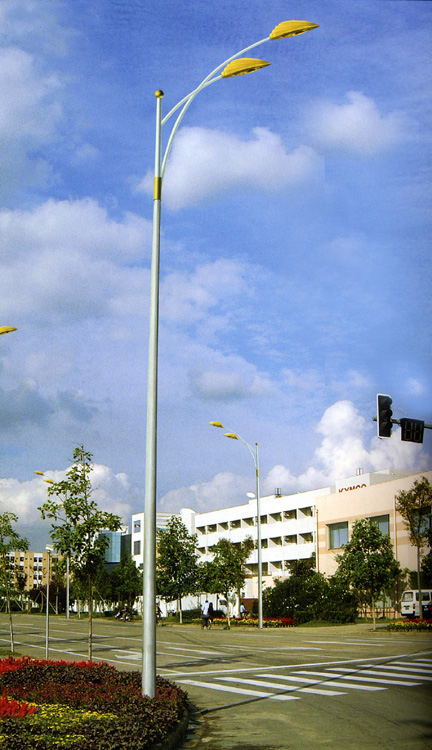

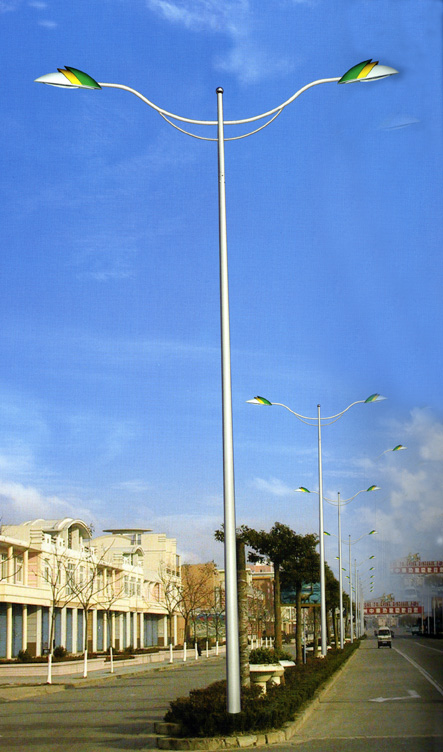

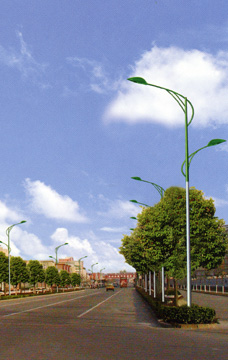

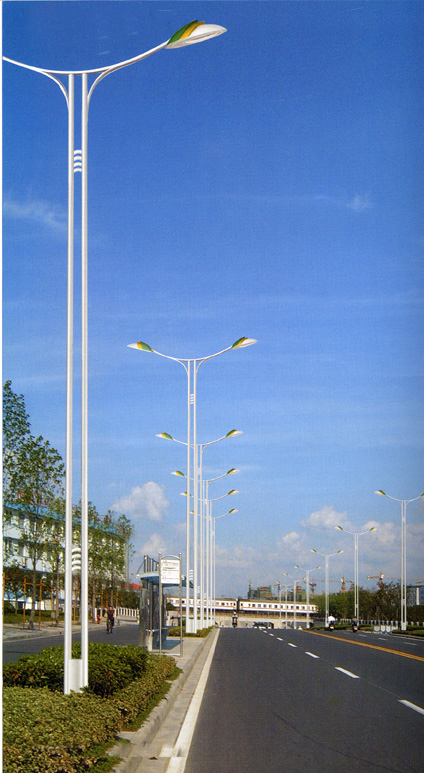

005 006 007 008

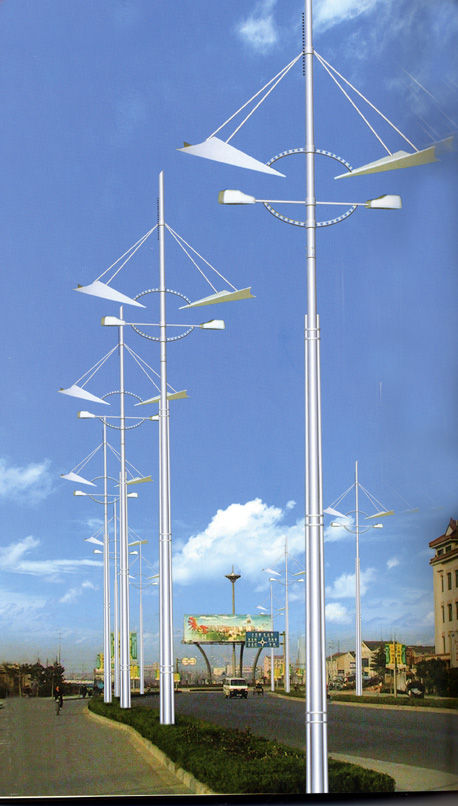

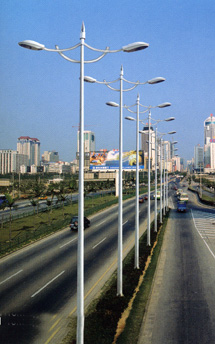

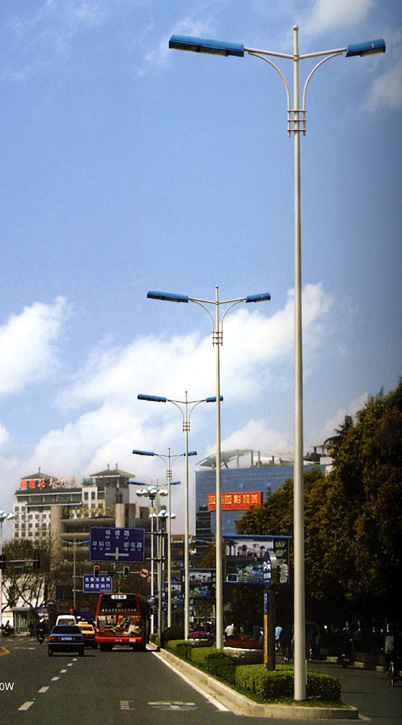

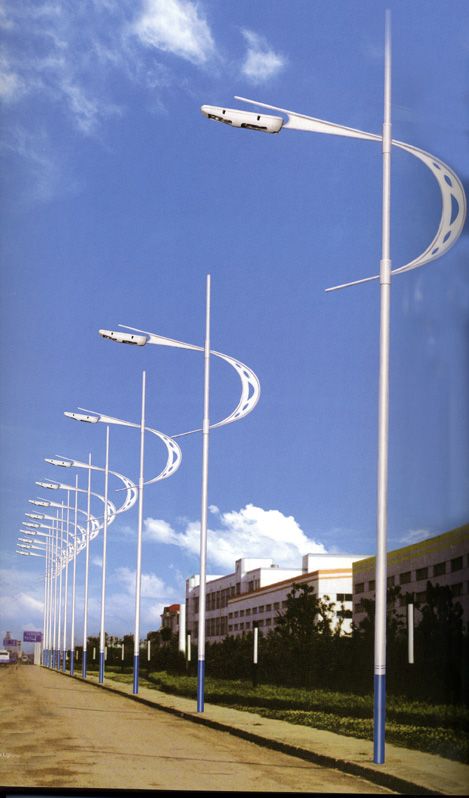

009 010 011 012

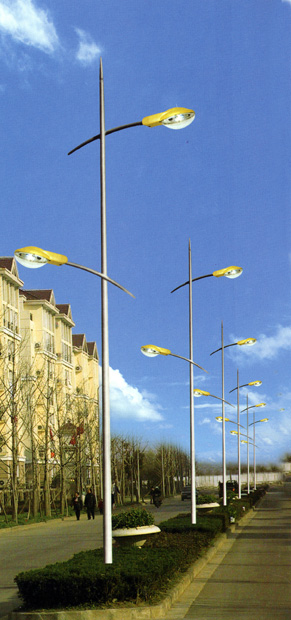

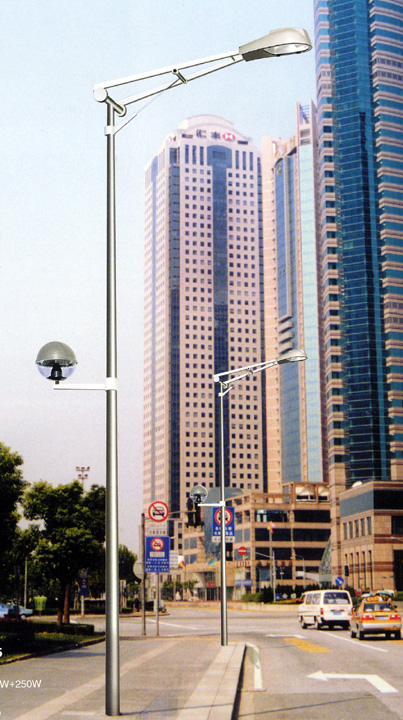

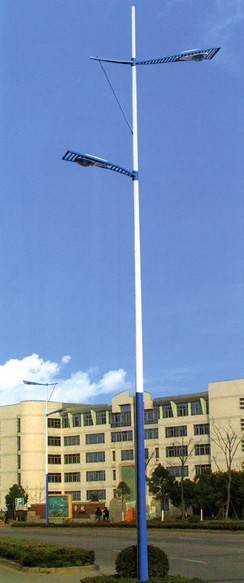

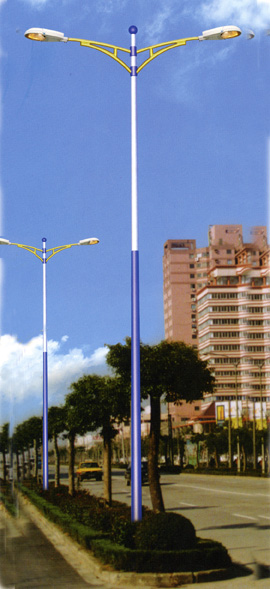

013 014 015 016

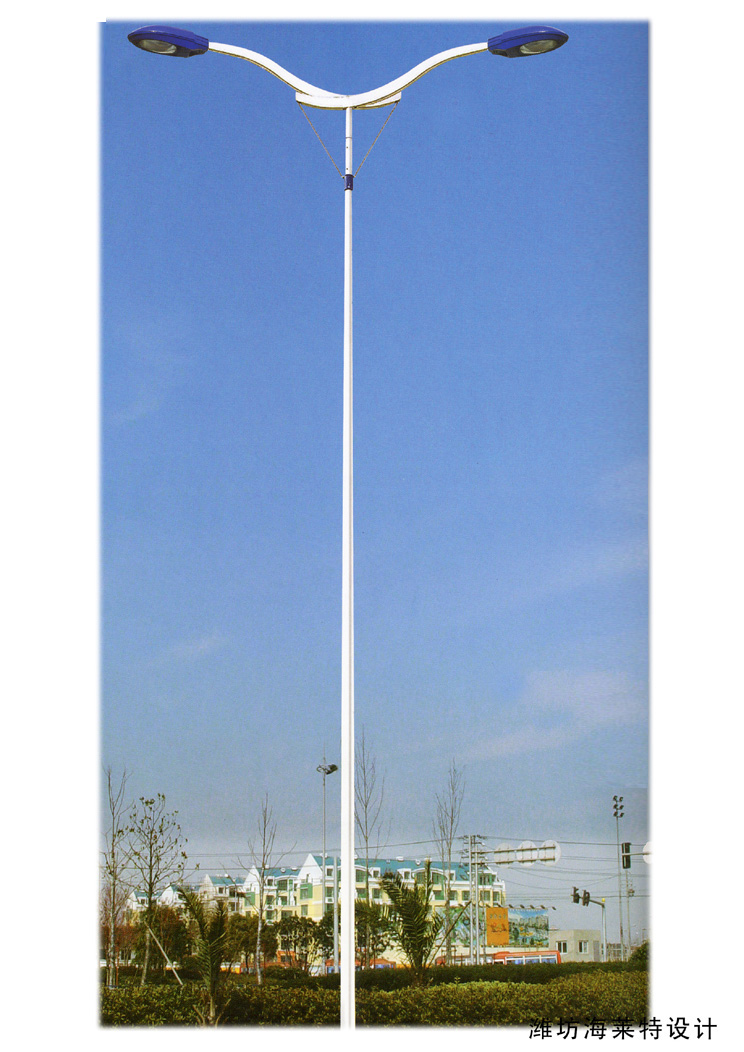

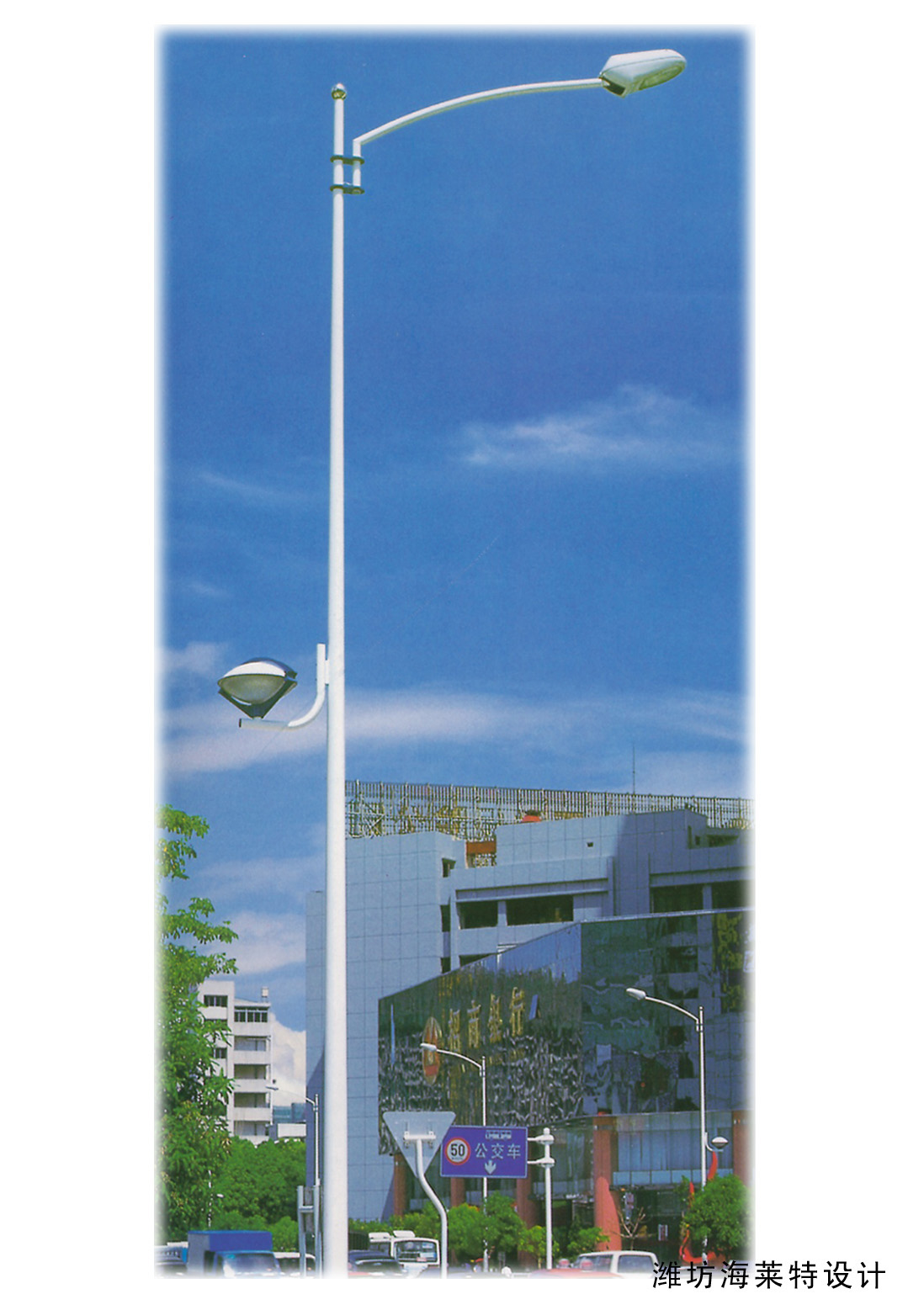

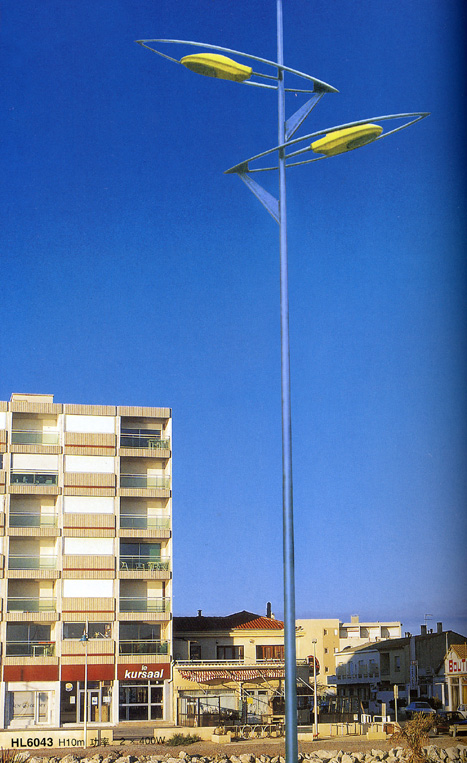

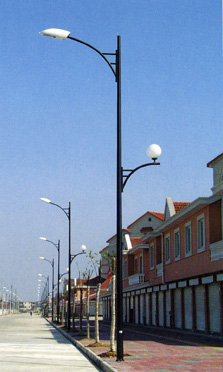

017 018 019 020

>>> More
